General Information
|
|

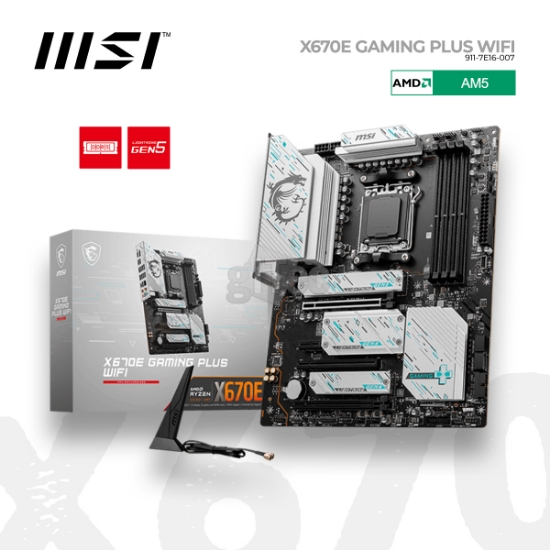

Model
|
911-7E16-007 |
|
Manufacturer
|
MSI |
|
Official Manufacturer Link
|
https://www.msi.com/Motherboard/X670E-GAMING-PLUS-WIFI |
|
Warranty
|
1 Year |
|
Motherboard Specifications
|
|
CPU Compatibility
|
AMD |
|
Socket
|
AM5 |
|
Form Factor
|
ATX |
|
Chipset
|
AMD X670 |
|
Memory
|
DDR5 |
|
Memory Slot Numbers
|
4 |
|
Max Memory Supported
|
Maximum Memory Capacity 256GB |
|
PCIE Slot
|
3x PCI-E x16 slot, 1x PCI-E x1 slot |
|
Storage
|
4x M.2: M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices, M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
|
Raid
|
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 for M.2 NVMe storage devices |
|
USB
|
3x USB 3.2 Gen 2 10Gbps (Type-A), 4x USB 3.2 Gen 1 5Gbps (Type-A), 4x USB 2.0 (Type-A), 1x USB 3.2 Gen 2x2 20Gbps (Type-C) |
|
LAN
|
2.5G LAN |
|
Wifi
|
Yes |
|
Internal IO
|
1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports |
