General Information
|
|
Model
|

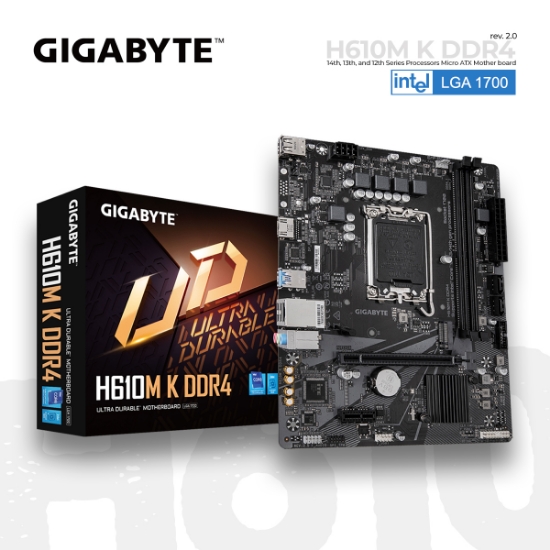

H610M K DDR4 rev. 2.0 |
|
Manufacturer
|
GIGABYTE |
|
Official Manufacturer Link
|
https://www.gigabyte.com/Motherboard/H610M-K-DDR4-rev-20#kf |
|
Warranty
|
1 Year |
|
Motherboard Specifications
|
|
CPU Compatibility
|
Intel |
|
Socket
|
LGA 1700 |
|
Form Factor
|
M-ATX |
|
Chipset
|
H610 |
|
Memory Slot Numbers
|
2 |
|
Memory
|
DDR4 |
|
Max Memory Supported
|
64GB |
|
PCIE Slot
|
PCI Express x16 slot, supporting PCIe 4.0 and running at x16, 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
Storage
|
M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 2x SATA 6Gb/s connectors |
|
USB
|
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
LAN
|
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
|
Wifi
|
No |
|
Internal IO
|
1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector,1 x CPU fan header, 1 x system fan header, 1 x M.2 Socket 3 connector, 2 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only), 1 x Clear CMOS jumper |
|
Back Panel Ports
|
1 x HDMI port, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks |
