Products specifications
| Attribute name | Attribute value |
|---|---|
| General Information | |

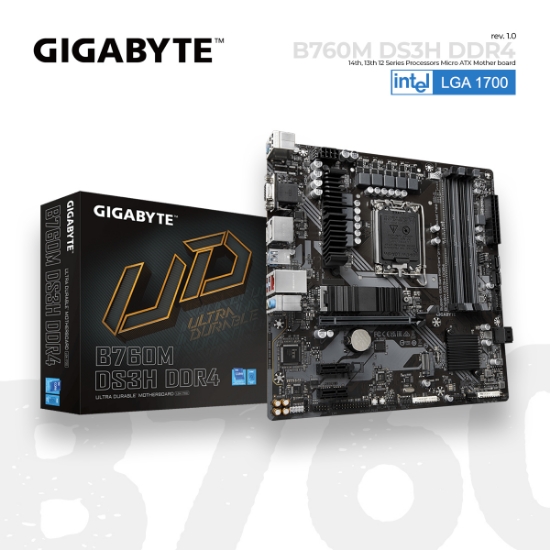

| Model | B760M DS3H DDR4 (rev. 1.0), 2x USB 2.0/1.1 ports, 1x PS/2 keyboard/mouse port, 1x D-Sub port, 1x HDMI port, 2x DisplayPorts, 3x USB 3.2 Gen 1 ports, 1x USB Type-C® port, with USB 3.2 Gen 2 support, 1x RJ-45 port 3 x audio jacks |
| Manufacturer | GIGABYTE |
| Official Manufacturer Link | https://www.gigabyte.com/Motherboard/B760M-DS3H-DDR4-rev-10#kf |
| Warranty | 1 Year |
| Color | Black |
| Motherboard Specifications | |
| CPU Compatibility | Intel |
| Socket | LGA 1700 |
| Form Factor | M-ATX |
| Chipset | B760 |
| Memory | DDR4 |
| Memory Slot Numbers | 4 |
| Max Memory Supported | 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| PCIE Slot | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Storage | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB), 4 x SATA 6Gb/s connectors |
| Raid | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | 2 x USB 2.0/1.1 ports, 3 x USB 3.2 Gen 1 ports, 1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wifi | No |
| Internal IO | 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 3x system fan headers, 1x addressable LED strip header, 1x RGB LED strip header, 2x M.2 Socket 3 connectors, 4x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers, 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1x serial port header, 1x parallel port header, 1x S/PDIF Out header, 1x Q-Flash Plus button, 1x reset button, 1x reset jumper, 1x Clear CMOS jumper |
