General Information
|
|
Model
|

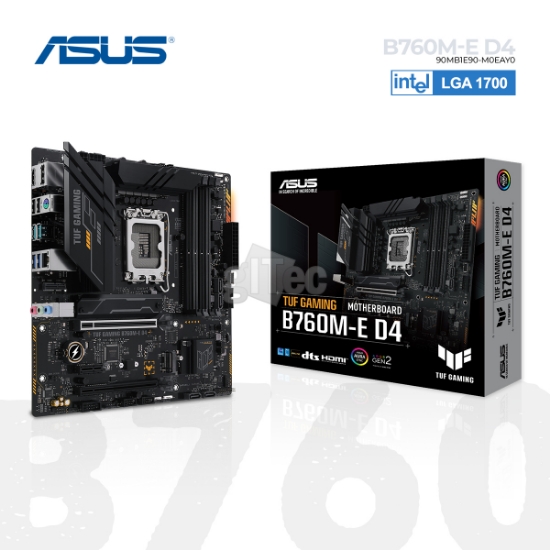

TUF GAMING B760M-E D4 (90MB1E90-M0EAY0) |
|
Manufacturer
|
ASUS |
|
Official Manufacturer Link
|
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-e-d4/ |
|
Warranty
|
1 Year |
|
Motherboard Specifications
|
|
CPU Compatibility
|
Intel |
|
Socket
|
LGA 1700 |
|
Form Factor
|
M-ATX |
|
Chipset
|
B760 |
|
Memory
|
DDR4 |
|
Memory Slot Numbers
|
4 |
|
Max Memory Supported
|
128 GB |
|
PCIE Slot
|
1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot |
|
Storage
|
1x M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 1x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports |
|
Raid
|
SATA RAID 0/1/5/10. |
|
LAN
|
1 x Realtek 2.5Gb Ethernet (TUF LANGuard) |
|
Wifi
|
No |
|
Internal IO
|
1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 2x 4-pin Chassis Fan headers, 1x 24-pin Main Power connector, 1x 8-pin +12V Power connector ,1x 4-pin +12V Power connector, 2x M.2 slots (Key M), 4x SATA 6Gb/s ports, 1x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®), 1x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 3 x Addressable Gen 2 headers, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x S/PDIF Out header |
|
Back Panel Ports
|
2x USB 3.2 Gen 2 (10G) ports (2 x Type-A), 2x USB 3.2 Gen 1 (5G) ports (2 x Type-A), 2x USB 2.0 ports (2 x Type-A), 1x DisplayPort 1 x HDMITM port, 1x Realtek2.5Gb Ethernet port, 3x Audio jacks, 1x Vertical M.2 slot (Key E), 1x PS/2 Keyboard/Mouse combo port |
