Products specifications
| Attribute name | Attribute value |
|---|---|
| General Information | |

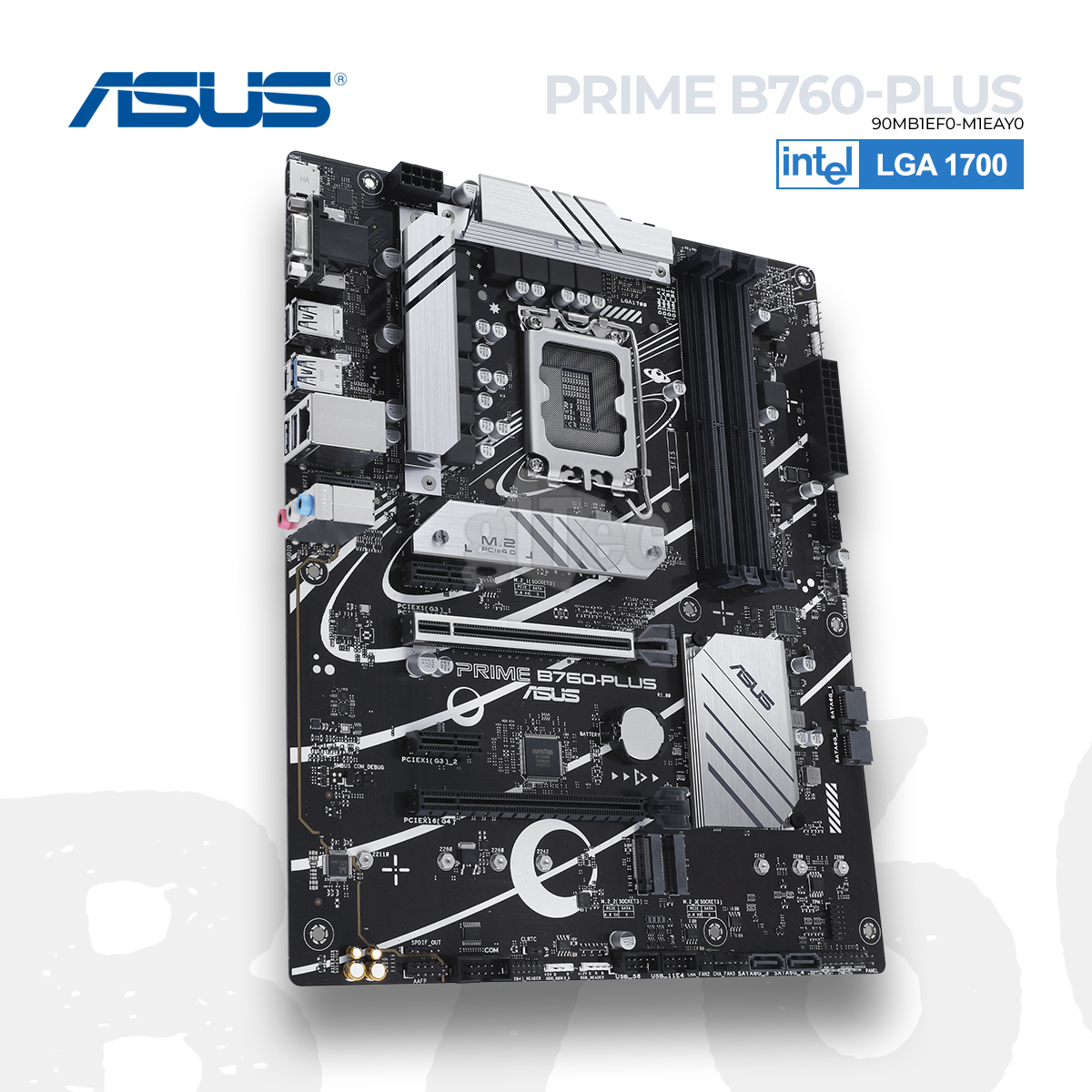

| Model | 90MB1EF0-M1EAY0 |
| Manufacturer | ASUS |
| Official Manufacturer Link | https://www.asus.com/motherboards-components/motherboards/prime/prime-b760-plus/ |
| Warranty | 2 Year |
| Motherboard Specifications | |
| CPU Compatibility | Intel |
| Socket | LGA 1700 |
| Form Factor | ATX |
| Chipset | Intel® B760 Chipset |
| Memory | DDR5 |
| Memory Slot Numbers | 4 |
| Max Memory Supported | 192GB |
| PCIE Slot | 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot (supports x4 mode), 2x PCIe 3.0 x1 slots |
| Storage | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode), 4 x SATA 6Gb/s ports |
| Raid | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| USB | 1x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 2x USB 3.2 Gen 2 ports (2 x Type-A), 1x USB 3.2 Gen 1 port (1 x Type-A), 2x USB 2.0 ports (2 x Type-A) |
| Internal IO | 1x 4-pin CPU Fan header, 1x 4-pin AIO Pump header, 3x 4-pin Chassis Fan headers, 1x 24-pin Main Power connector, 1x 8-pin +12V Power connector, 3x M.2 slots (Key M) 4 x SATA 6Gb/s ports, 1x USB 3.2 Gen 1 connector (supports USB Type-C® ), 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2x USB 2.0 headers support 4 additional USB 2.0 ports 3x Addressable Gen 2 headers, 1x Aura RGB header, 1x Clear CMOS header, 1x COM Port header, 1x Front Panel Audio header (AAFP), 1x S/PDIF Out header, 1x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function 1x Thunderboltâ„¢ (USB4®) header |
| Back Panel Ports | 1x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 2x USB 3.2 Gen 2 ports (2 x Type-A), 1x USB 3.2 Gen 1 port (1 x Type-A), 2x USB 2.0 ports (2 x Type-A), 1x DisplayPort, 1x VGA port, 1x HDMIâ„¢ port, 1x Vertical M.2 slot (Key E), 1x Realtek 2.5Gb Ethernet port, 3x Audio jacks |
