Products specifications
| Attribute name | Attribute value |
|---|---|
| General Information | |

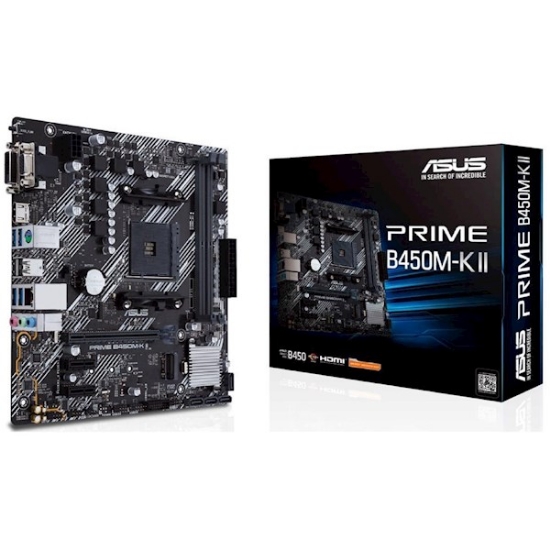

| Model | 90MB1600-M0EAY0 |
| Manufacturer | ASUS |
| Official Manufacturer Link | https://www.asus.com/motherboards-components/motherboards/prime/prime-b450m-k-ii/ |
| Warranty | 1 Year |
| Color | Black |
| Motherboard Specifications | |
| CPU Compatibility | AMD |
| Socket | AM4 |
| Form Factor | M-ATX |
| Chipset | AMD B450 |
| Memory | DDR4 |
| Memory Slot Numbers | 2 |
| Max Memory Supported | 64GB |
| PCIE Slot | 3rd/2nd/1st Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x4 mode) AMD B450 chipset 2 x PCIe 2.0 x1 |
| Storage | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD B450 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| Raid | Support Raid 0, 1, 10 |
| USB | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| LAN | Realtek® RTL8111H ASUS LANGuard |
| Wifi | No |
| Internal IO | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector |
| Back Panel Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) 1 x BIOS FlashBack™ Button(s) |
