Sorry - this product is no longer available

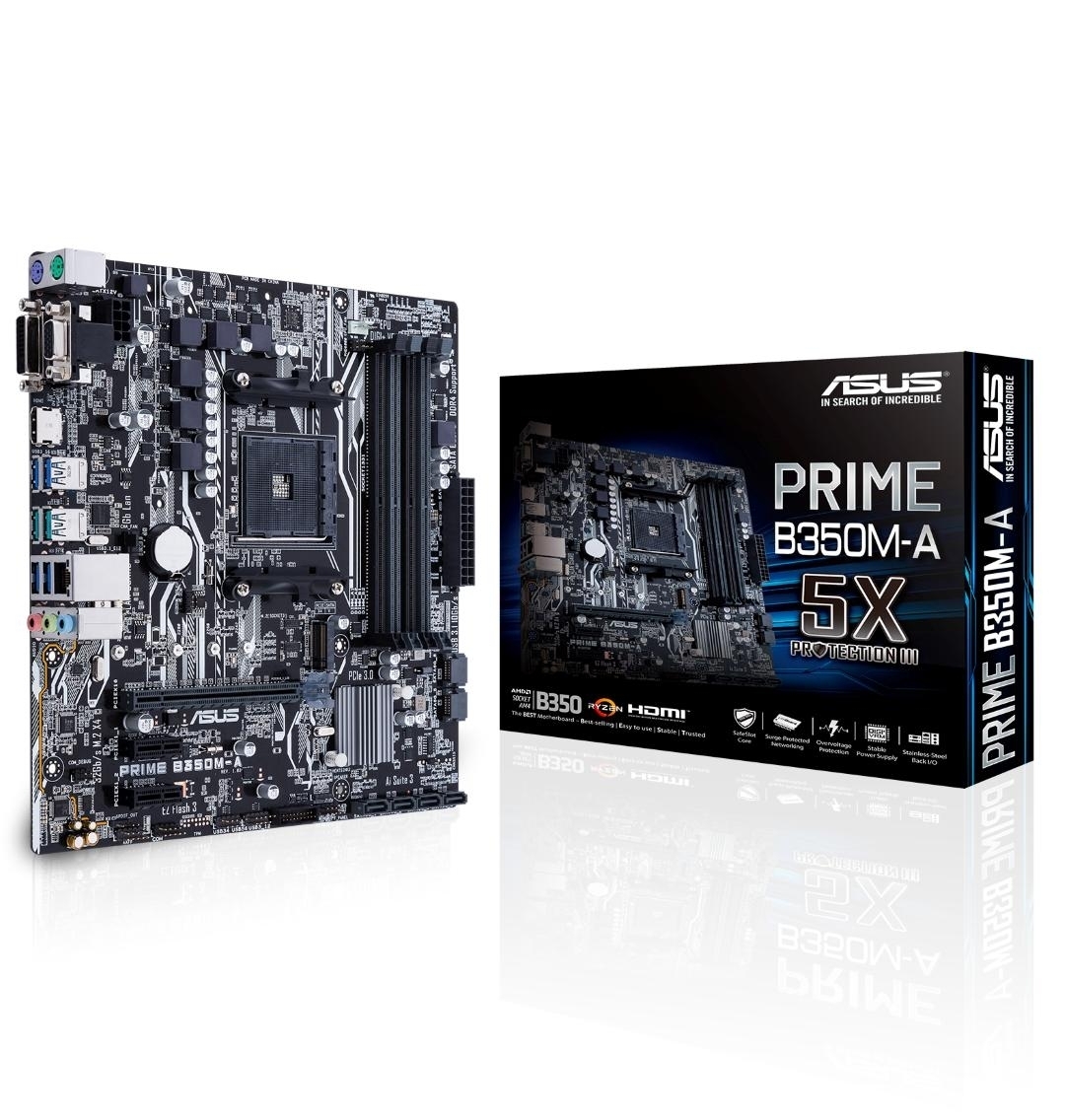

Motherboard Asus PRIME (AB350M-A) DDR4 AM4
Asus PRIME B350M-A AM4 B350 MATX 4 x DIMM, Max. 64GB, DDR4, Gigabit Ethernet, USB 3.1, mATX
SKU: 60355
Manufacturer part number: B350M-A
| orm Factor | MicroATX |
| CPU Socket | AM4 |
| Chipset | AMD B350 |
| RAM Memory Support |
|---|
| Memory Type | DDR4 |
| Memory Channel | Dual (2) |
| Memory Type (ECC) | Non-ECC |
| Memory Type (R/U) | UDIMM (Unbuffered) |
| Memory Speed (Mhz) | - DDR4 - 2133
- DDR4 - 2400
- DDR4 - 2666
|
| Max. Memory Capacity | 32GB (4x8GB) |
| Audio |
|---|
| Audio | Realtek ALC887-VD2 8-Channel HD Audio |
| Graphics Support |
|---|
| Primary GPU Interface | PCIe 3.0 (x16) |
| SLI Support | Not Supported |
| Crossfire Support | Not Supported |
| On-Board Graphics Connectors | |
| Internal Connectivity |
|---|
| Expansion Slots | - 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
- 2 x PCIe 2.0 x1
- 1 x PCIe 3.0 x16
|
| SATA Support | SATA3 / M.2 |
| RAID Support via | SATA |
| Storage Mode Support | - NVMe Boot (via M.2 PCIe Slot)
- NVMe Boot (via PCIe 3.0 Slot)
- RAID 0
- RAID 1
- RAID 10
|
| Internal I/O | - 1 x 24-pin (Power)
- 1 x 4-pin CPU Fan Connector
- 1 x 4-pin System Fan Connector
- 1 x 8-pin (Power)
- 1 x Clear CMOS jumper
- 1 x Fan RGB Header
- 1 x Front Panel Audio Header
- 6 x SATA III - 6Gb/s
- 1 x Serial (COM) Header
- 1 x SPDIF-Out Header
- 1 x speaker header
- 1 x System panel connector
- 2 x USB 2.0 Header
- 1 x USB 3.0 Header
|
| External Connectivity |
|---|
| Network Interface Type | Wired Gigabit LAN (10/100/1000) |
| Network Chip/Modules | 1 x Realtek RTL8111H (Gigabit LAN) |
| Rear I/O Connectors | - 1 x 10/100/1000 (LAN)
- 1 x D-Sub (VGA) Out
- 1 x DVI-D
- 1 x HDMI 1.4
- 1 x Line In
- 1 x Line Out
- 1 x Mic-In
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 4 x USB 3.0
- 2 x USB 3.1 Type-A
|
| Other Motherboard Specifications |
|---|
| Water Cooled | No |
| QPI Speed | N/A |
