Products specifications
| Attribute name | Attribute value |
|---|---|
| General Information | |

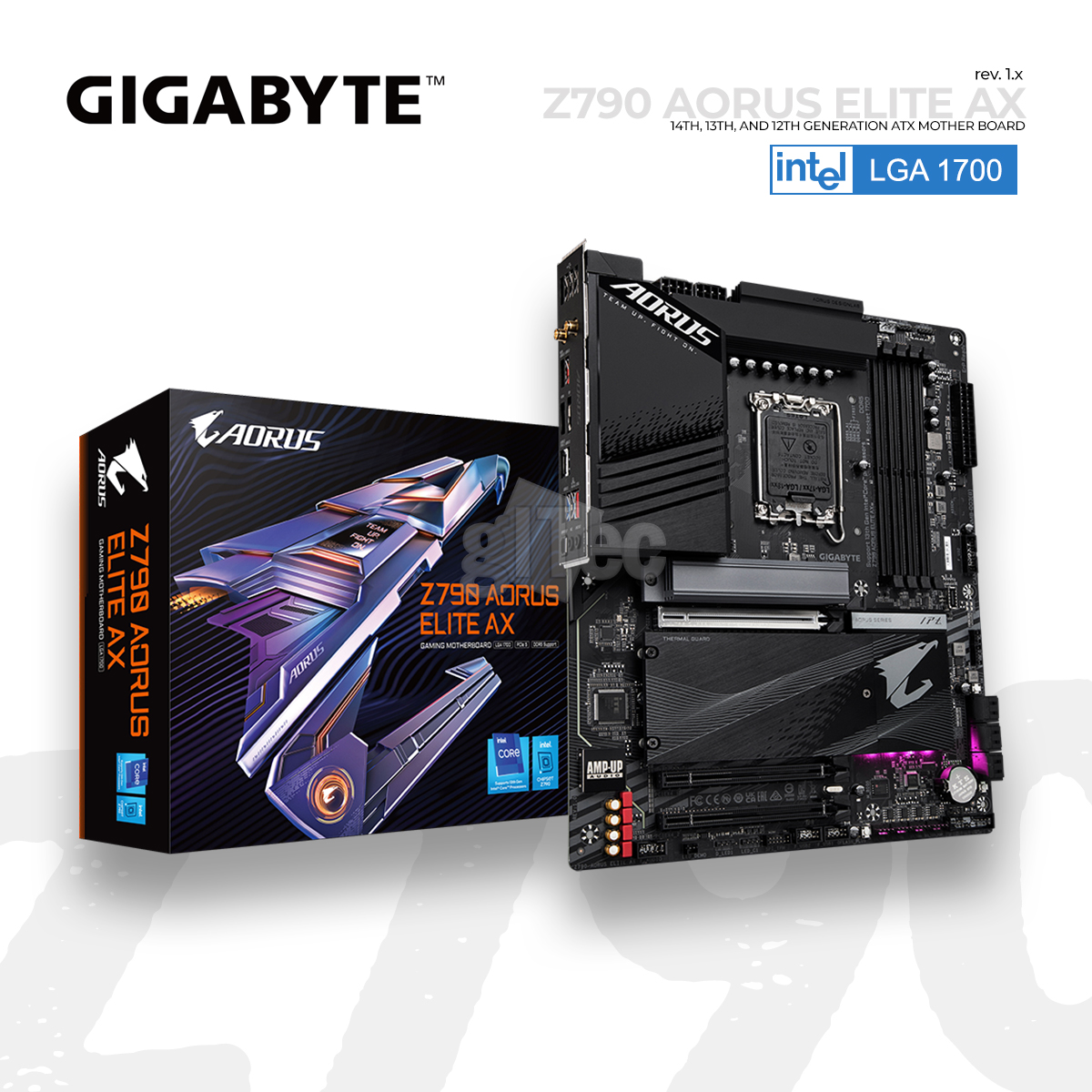

| Model | Z790 AORUS ELITE AX |
| Manufacturer | GIGABYTE |
| Official Manufacturer Link | https://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-rev-10#kf |
| Warranty | 1 Year |
| Color | Black |
| Motherboard Specifications | |
| CPU Compatibility | Intel |
| Socket | LGA 1700 |
| Form Factor | ATX |
| Chipset | Intel® Z790 Chipset |
| Memory | DDR5 |
| Memory Slot Numbers | 4 |
| Max Memory Supported | 256GB |
| PCIE Slot | 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1), 1x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| Storage | 2x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB), 1x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB), 6 x SATA 6Gb/s |
| Raid | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesm, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
| USB | 1x USB Type-C® port, with USB 3.2 Gen 2x2 support, 2x USB 3.2 Gen 2 Type-A ports (red), 3x USB 3.2 Gen 1 ports, 4x USB 2.0/1.1 ports |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wifi | Yes |
| Internal IO | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Ports | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
