Products specifications
| Attribute name | Attribute value |
|---|---|
| General Information | |

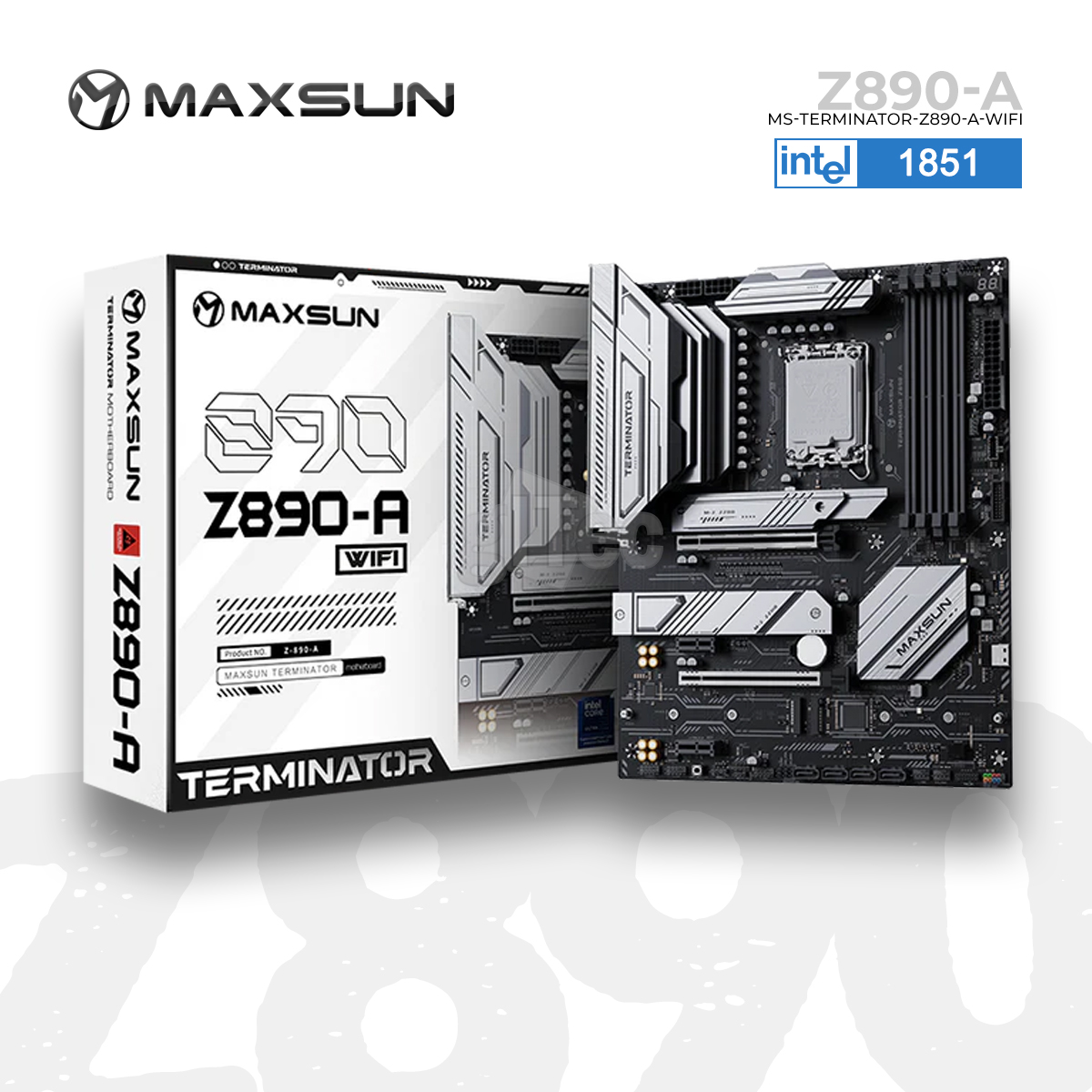

| Model | Terminator Z890-A WIFI |
| Manufacturer | MAXSUN |
| Official Manufacturer Link | https://www.maxsun.com/products/terminator-z890-a-wifi |
| Warranty | 1 Year |
| Motherboard Specifications | |
| CPU Compatibility | Intel |
| Socket | LGA1851 |
| Form Factor | ATX |
| Chipset | Intel® Z890 Chipset |
| Memory | DDR5 |
| Memory Slot Numbers | 4 |
| Max Memory Supported | 4x DDR5, Maximum Memory Capacity 256 GB in Total |
| PCIE Slot | 1 × PCIe 5.0 x16 (configurable as x8+x8 or x8+x4+x4) 1 × PCIe x16 (supports PCIe 4.0 x4) 2 × PCIe x1 (supports PCIe 4.0 x1) |
| Storage | 1 × M.2 slot (supports PCIe 5.0 x4/x2, 2242/2280) 3 × M.2 slots (supports PCIe 4.0 x4/x2, 2242/2280/22110) 4 × SATA 6Gb/s ports 1 × SFF-8654 4i interface (supports PCIe 4.0 x4/x2 or 4x SATA 6Gb/s) |
| USB | 1 × Type-C® 40G, 6 × USB 3.2 5G Type-A ports 2 × USB 2.0 Type-A ports |
| LAN | Integrated Realtek RTL8125D 2.5G LAN |
| Wifi | Yes, Intel® AX201 wireless module with Wi-Fi 6 and Bluetooth 5.2 support |
| Internal IO | 1 × 24-pin ATX power connector 2 × 8-pin +12V power connectors 2 × 3-pin ARGB headers 1 × 4-pin NRGB header 1 × COM header 1 × CLR CMOS reset header 1 × 4-pin CPU fan header 1 × 4-pin pump fan header (supports DC regulation) 4 × 4-pin chassis fan headers |
| Back Panel Ports | 6× USB 3.2 5Gbps Type-A, 2× USB 2.0 Type-A ports, 1x USB Type-C USB4 40G, 1x HDMI 2.0, 1x DisplayPort 1.4, 1x RJ-45 2.5 Gigabit Port, 5x audio 3.5mm, 1x SPDIF OUT, 2x WIFI Antena, 1x CLEAR CMOS |
