Products specifications
| Attribute name | Attribute value |
|---|---|
| General Information | |

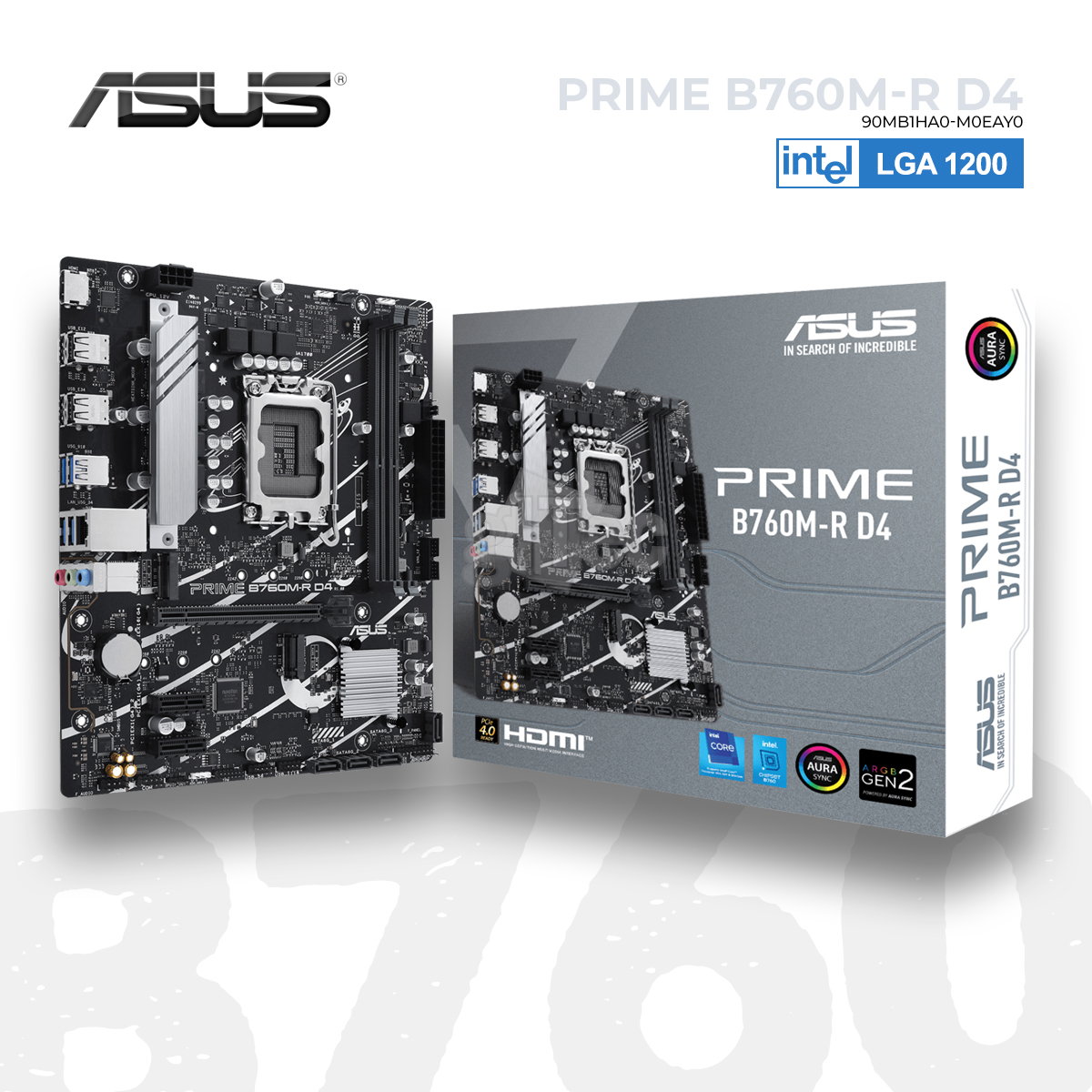

| Model | 90MB1HA0-M0EAY0 |
| Manufacturer | ASUS |
| Official Manufacturer Link | https://shorturl.at/lfUit |
| Warranty | 1 Year |
| Motherboard Specifications | |
| CPU Compatibility | Intel |
| Socket | LGA 1700 |
| Form Factor | M-ATX |
| Chipset | Intel® B760 Chipset |
| Memory | DDR4 |
| Memory Slot Numbers | 2 |
| Max Memory Supported | Max. 64GB |
| PCIE Slot | 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots |
| Storage | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Raid | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| USB | 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| Wifi | No |
| Internal IO | 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector, 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports, 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front panel audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Back Panel Ports | 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMITM port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
