Sorry - this product is no longer available

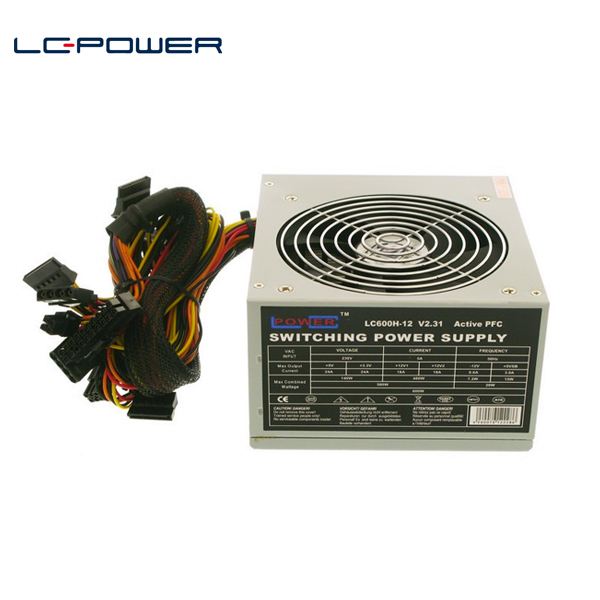

LC Power Silent Power LC600H-600W/12 V2.31
ATX 600W LC-POWER LC-6600 12cm V2.x rt.
| Power supply type | Office Series |
| ATX standard | ATX V2.31 |
| Connectors | |
| 20+4 pin mainboard | 1x 40 cm |
| 4+4 pin mainboard 12V | 1x 40 cm |
| PCI-Express | 1x PCI-Express 6-Pin 40 cm;
1x PCI-Express 6+2-Pin 50 cm |
| SATA | 6 (2x 40 / 2x 50 / 1x 55 / 1x 65 cm) |
| PATA | 3 (2x 60 / 1x 75 cm) |
| FDD | 2x 70 cm |
| Mark of conformity | CE |
| Fan | 120 mm |
| PFC | active |
| Dimension h x w x d | 86 x 150 x 140mm |
| Weight (retail) | 1,467 kg |
| Power rating | 600W max. / peak |
| +3,3V | 24A |
| +5V | 24A |
| +12V1 | 20A |
| +12V2 | 20A |
| Standby consumption | 0,25W - ErP 2013 |
| Temperature control for case fan | yes |
| Security circuitry | OVP = Over-Voltage Protection
OPP = Over-Power Protection
SCP = Short-Circuit Protection
UVP = Under-Voltage Protection |
| Multirange (110V/220V) | no |
| Haswell compatible | yes |
600W max. / peak
120mm fan
1x PCI-Express 6 pin & 1x PCI-Express 6+2 pin
Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
