სპეციფიკაცია
| ატრიბუტის სახელი | ატრიბუტის მნიშვნელობა |
|---|---|
| General Information | |

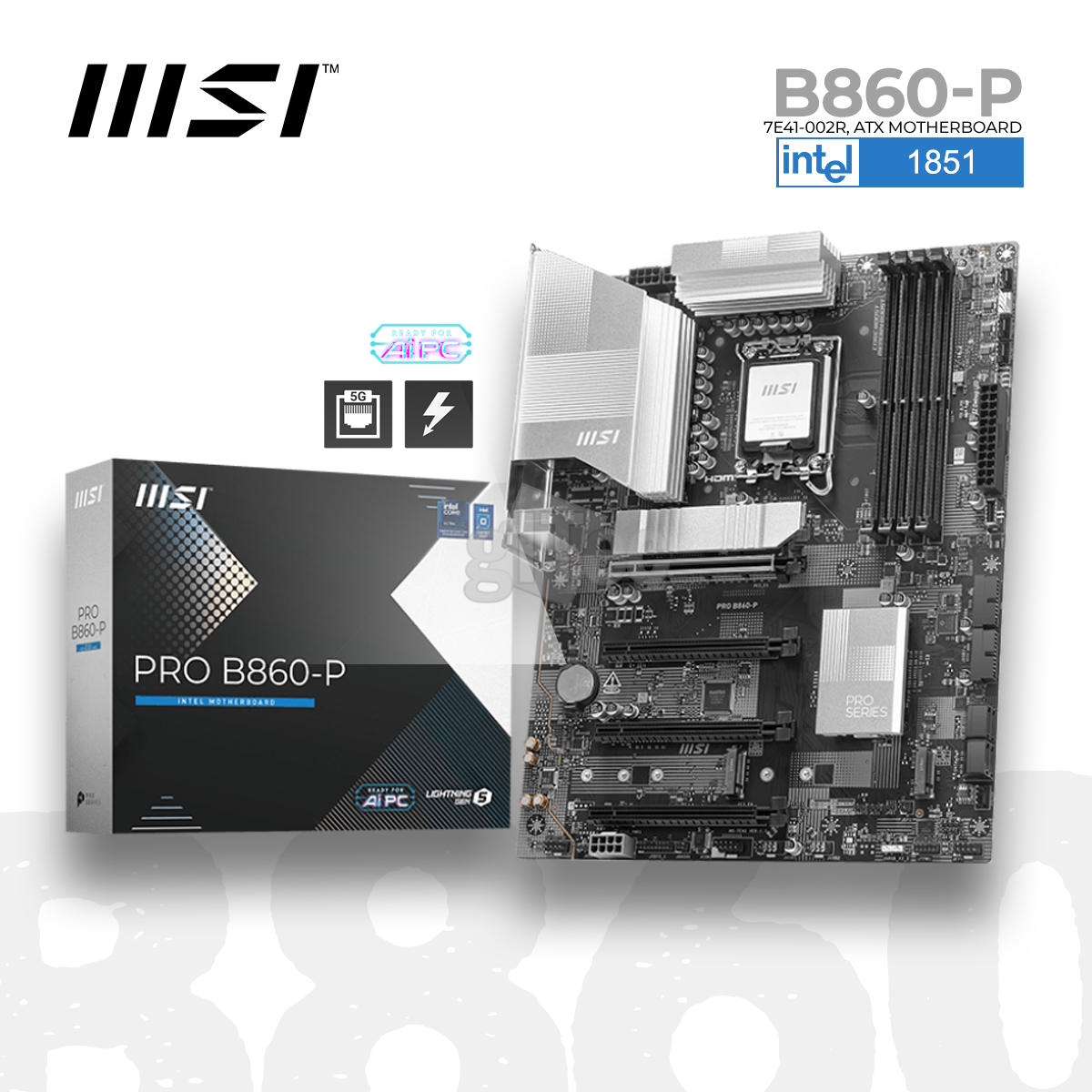

| Model | 7E41-002R |
| Manufacturer | MSI |
| Official Manufacturer Link | https://www.msi.com/Motherboard/PRO-B860-P |
| Warranty | 1 Year |
| Motherboard Specifications | |
| CPU Compatibility | Intel |
| Socket | LGA1851 |
| Form Factor | ATX |
| Chipset | INTEL B860 |
| Memory | DDR5 |
| Memory Slot Numbers | 4, Maximum Memory Capacity 256GB |
| PCIE Slot | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Storage | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 10Gbps Type-A, 1x Thunderbolt™ 4 40Gbps (Type-C), 4x USB 2.0, 2x USB 5Gbps Type-A, |
| LAN | Realtek® 8126 5Gbps LAN |
| Wifi | No |
| Internal IO | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports, 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Back Panel Ports | 1x DisplayPort, 4x USB 2.0, 2x USB 5Gbps Type-A, 1x 5G LAN,3x Audio Connectors, 1x HDMI™, 1x Thunderbolt™ 4 40Gbps (Type-C), 2x USB 10Gbps Type-A, 1x Clear CMOS Button |
