სპეციფიკაცია
| ატრიბუტის სახელი | ატრიბუტის მნიშვნელობა |
|---|---|
| General Information | |

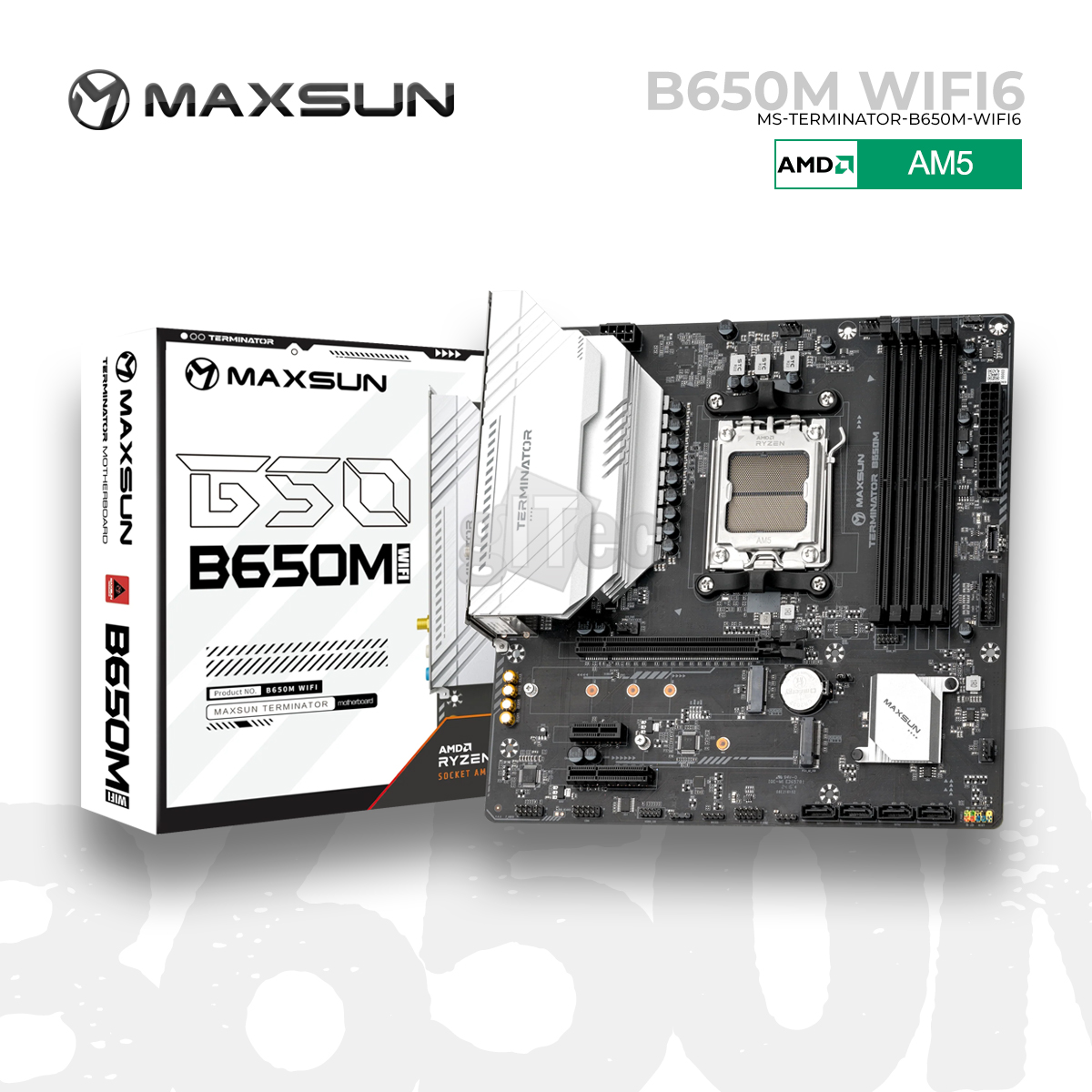

| Model | MS-Terminator B650M WIFI6 |
| Manufacturer | MAXSUN |
| Official Manufacturer Link | https://www.maxsun.com/products/terminator-b650m-wifi6 |
| Warranty | 1 Year |
| Motherboard Specifications | |
| CPU Compatibility | AMD |
| Socket | AM5 |
| Form Factor | M-ATX |
| Chipset | AMD® B650 Chipset |
| Memory | DDR5 |
| Memory Slot Numbers | 4 |
| PCIE Slot | 1x PCIe 5.0 x16 slot 1x PCIe 4.0 x4 slot 1x PCIe 3.0 x1 slot |
| Storage | 1*M.2 slot ((2280/22110 PCIE X4/X2 channel SSD only), 4x SATA 3.0 ports |
| USB | Onboard rear ports: 4* USB3.2 GEN1 ports, 4* USB2.0 ports,and and 1 USB Type-C (10Gbps) port Board pins: 1 set (2) USB2.0 pins, 1 set (2) USB3.2 GEN1 pins, 1 front USB Type-C (10Gbps) port |
| LAN | Realtek® RTL8125BG NIC Chip |
| Wifi | Yes |
| Internal IO | 1x 24-pin Power Connector(ATX_PWR) 1 8PIN motherboard ATX 12V power port with 12V input 1x CPU Fan 2x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS |
| Back Panel Ports | 1x HDMI, 1x DisplayPort, 4x USB 2.0, 1x Type-c, 4x USB3.2, 1x LAN RJ45 (2.5G), 1x SPDIF OUT, 5x audio 3.5mm |
