სპეციფიკაცია
| ატრიბუტის სახელი | ატრიბუტის მნიშვნელობა |
|---|---|
| General Information | |

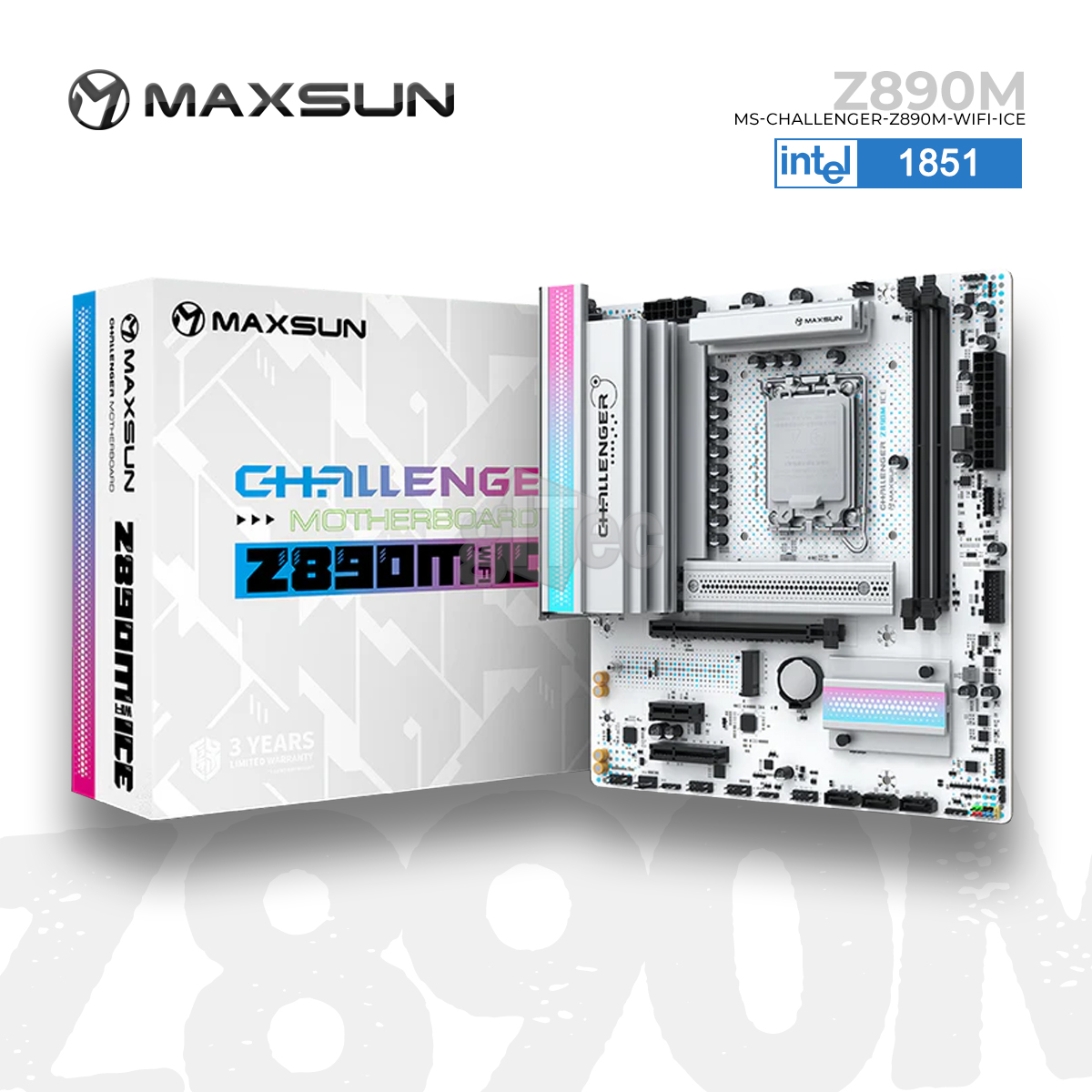

| Model | Challenger Z890M WIFI ICE |
| Manufacturer | MAXSUN |
| Official Manufacturer Link | https://www.maxsun.com/products/challenger-z890m-wifi-ice |
| Warranty | 1 Year |
| Motherboard Specifications | |
| CPU Compatibility | Intel |
| Socket | LGA1851 |
| Form Factor | M-ATX |
| Chipset | Intel B890 |
| Memory | DDR5 |
| Memory Slot Numbers | 4 |
| Max Memory Supported | 4x DDR5, Maximum Memory Capacity 128 GB in Total |
| PCIE Slot | 1 × PCIe 5.0 x16 slot (supports PCIe 5.0 x16 mode) 1 × PCIe 4.0 x4 slot (supports PCIe 4.0 x4 mode) 1 × PCIe 3.0 x1 slot (supports PCIe 3.0 x1 mode) |
| Storage | 1 × M.2 slot (PCIe 5.0 x4/x2, supports 2242/2280/22110 lengths) 1 × M.2 slot (PCIe 4.0 x4/x2, supports 2242/2280/22110 lengths) 3 × SATA 6Gb/s ports |
| USB | 1 × Type-C® 10G, 4 × USB 3.2 5G Type-A ports 2 × USB 2.0 Type-A ports |
| LAN | Realtek RTL8125BG/D Ethernet LAN (2.5G) |
| Wifi | Yes, Intel® AX101 Wireless supporting Wi-Fi 6 and Bluetooth 5.2 |
| Internal IO | Power Connectors: 1 × 24-Pin ATX, 1 × 8+4 Pin +12V RGB Headers: 2 × 3-Pin ARGB, 1 × 4-Pin NRGB Other Headers: 1 × COM port header, CLR CMOS button, 1 × 4-Pin CPU FAN header, 1 × 4-Pin PUMP header, 2 × 4-Pin chassis fan headers |
| Back Panel Ports | 4× USB 3.2 5Gbps Type-A, 2× USB 2.0 Type-A ports, 1x USB Type-C USB4 40G, 1x HDMI 2.0, 1x DisplayPort 1.4, 1x RJ-45 2.5 Gigabit Port, 3x audio 3.5mm, 2x Wifi Antena, 1x CLEAR CMOS |
