General Information
|
|
Model
|

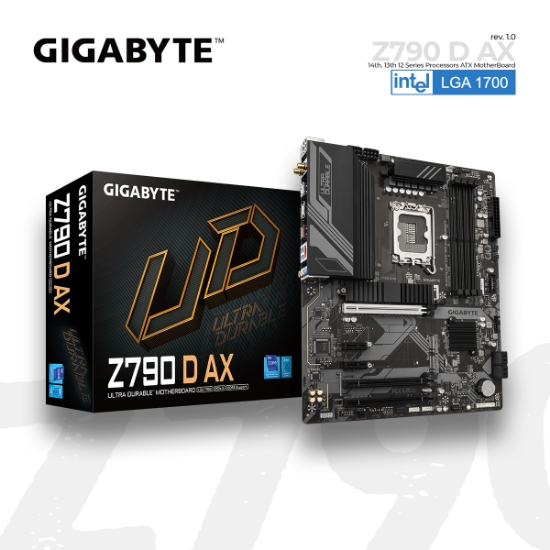

Z790 D AX (rev. 1.0), https://www.gigabyte.com/Motherboard/Z790-D-AX-rev-10#kf |
|
Manufacturer
|
GIGABYTE |
|
Warranty
|
1 Year |
|
Motherboard Specifications
|
|
CPU Compatibility
|
Intel |
|
Socket
|
LGA 1700 |
|
Form Factor
|
ATX |
|
Chipset
|
Z790 |
|
Memory
|
DDR5 |
|
Memory Slot Numbers
|
4 |
|
Max Memory Supported
|
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture |
|
PCIE Slot
|
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4), 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
|
Storage
|
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB), 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB), 4 x SATA 6Gb/s connectors |
|
Raid
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices / RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
USB
|
1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 2 Type-A port (red), 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports |
|
LAN
|
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Wifi
|
Yes |
|
Internal IO
|
1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable LED strip headers, 3 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 2 x Thunderbolt™ add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only), 1 x reset button, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper |
|
Back Panel Ports
|
1 x PS/2 keyboard/mouse port, 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 2 Type-A port (red), 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 2 x SMA antenna connectors (2T2R), 1 x HDMI port, 1 x DisplayPort, 1 x RJ-45 port, 3 x audio jacks |
