სპეციფიკაცია
| ატრიბუტის სახელი | ატრიბუტის მნიშვნელობა |
|---|---|
| General Information | |

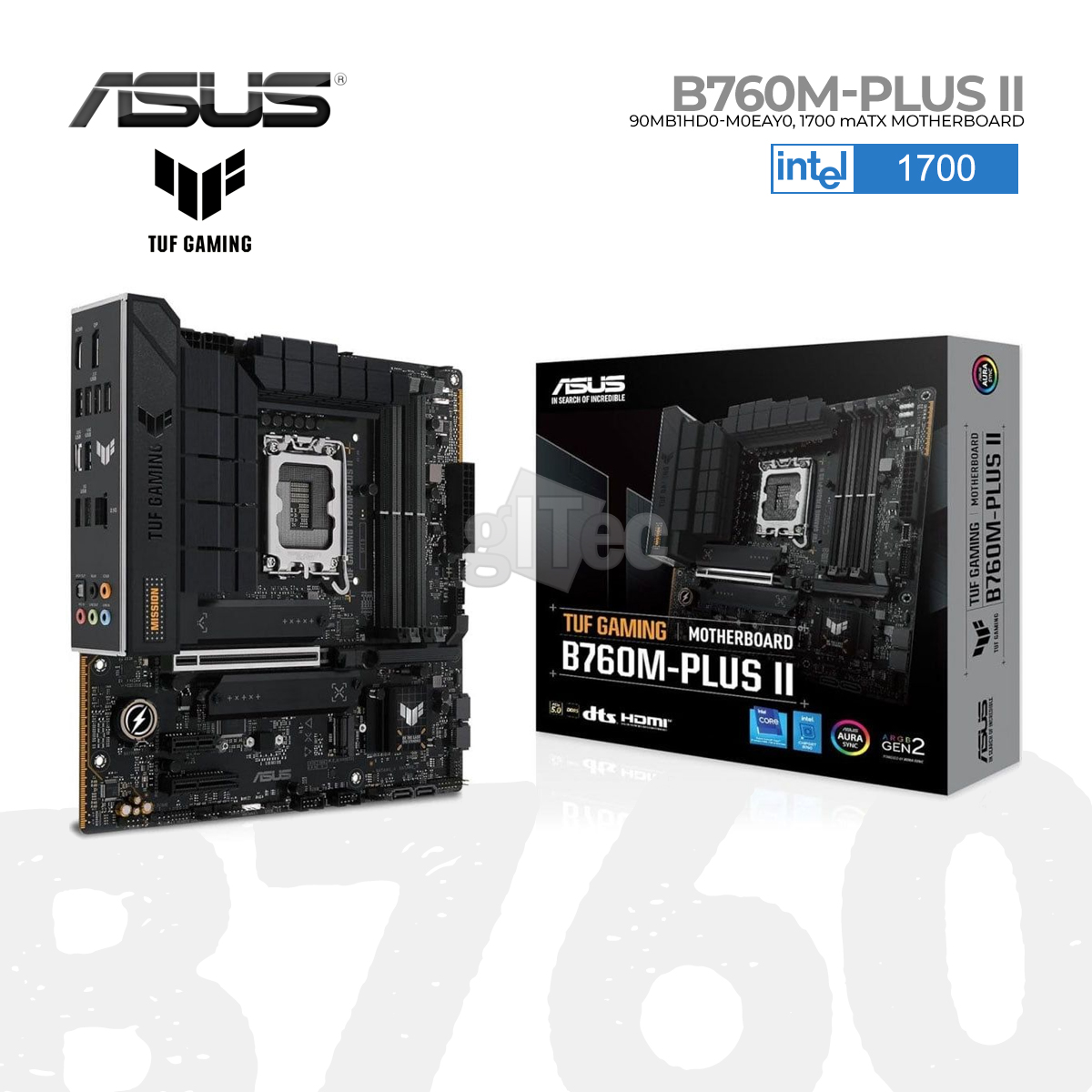

| Model | 90MB1HD0-M0EAY0 |
| Manufacturer | ASUS |
| Official Manufacturer Link | https://uk.store.asus.com/tuf-gaming-b760m-plus-ii-251419549-90mb1hd0-m0eay0.html |
| Warranty | 1 Year |
| Color | Black |
| Motherboard Specifications | |
| CPU Compatibility | Intel |
| Socket | LGA 1700 |
| Form Factor | M-ATX |
| Chipset | B760M |
| Memory | DDR5 |
| Memory Slot Numbers | 4 |
| Max Memory Supported | 192GB |
| PCIE Slot | 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x4 slot, 1 x PCIe 3.0 x1 slot |
| Storage | 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Raid | * Intel® Rapid Storage Technology supportsSATA RAID 0/1/5/10. |
| USB | 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| Wifi | No |
| Internal IO | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (F-AUDIO) 1 x20-3 pin System Panel header with chassis intrusion function 1 x Thunderbolt™ (USB4®) header |
| Back Panel Ports | 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
