სპეციფიკაცია
| ატრიბუტის სახელი | ატრიბუტის მნიშვნელობა |
|---|---|
| General Information | |

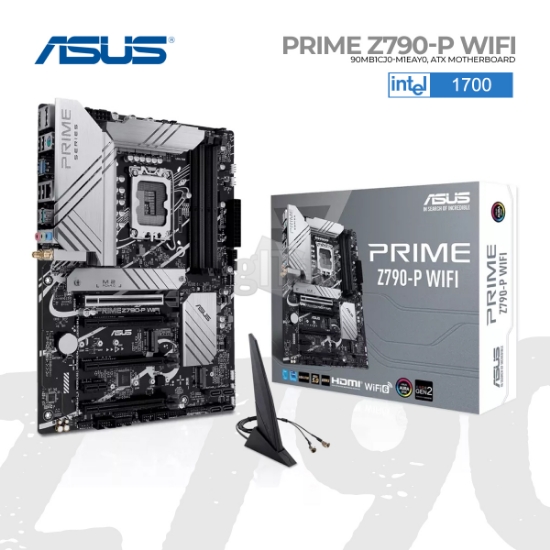

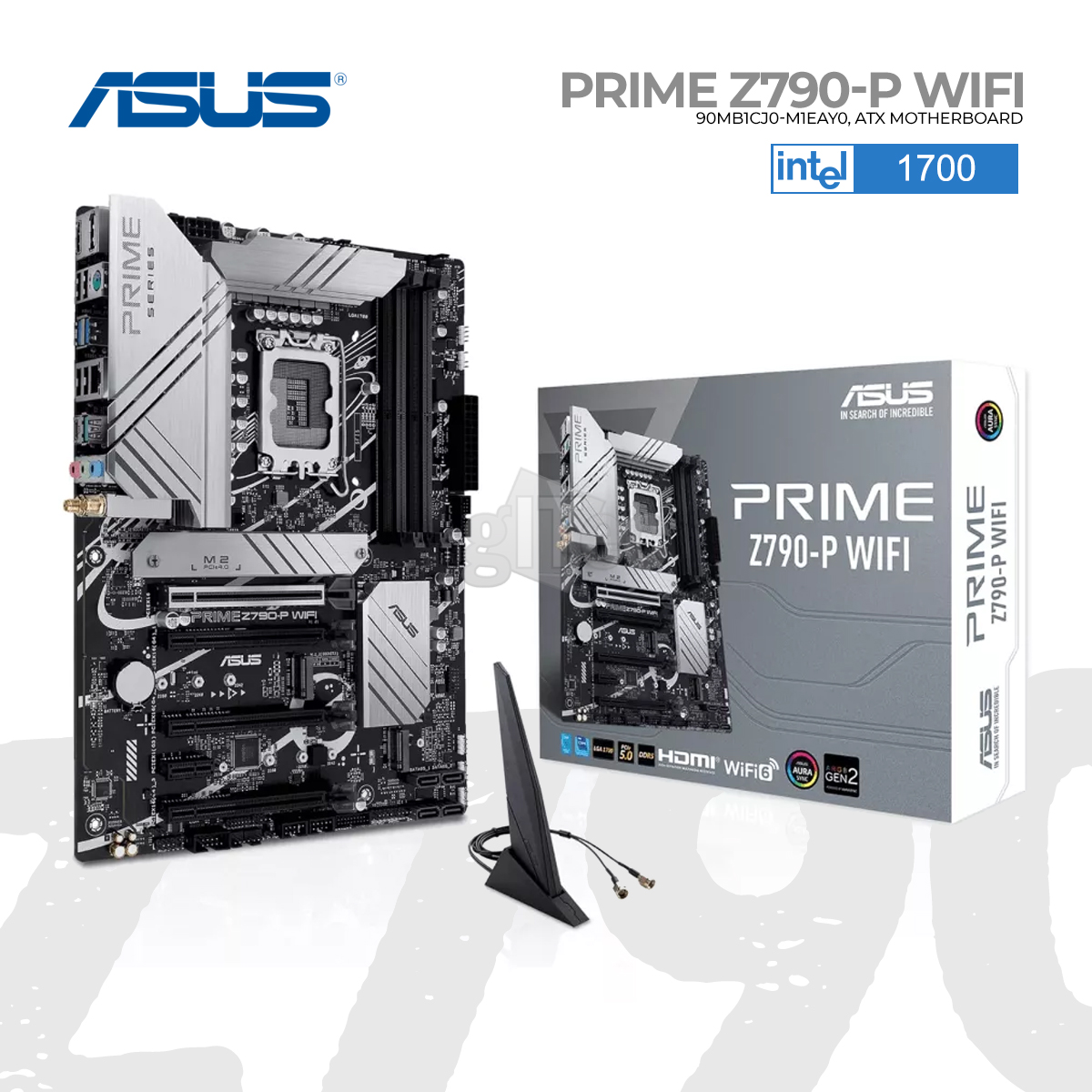

| Model | 90MB1CJ0-M1EAY0 |
| Manufacturer | ASUS |
| Official Manufacturer Link | https://www.asus.com/motherboards-components/motherboards/prime/prime-z790-p-wifi/ |
| Warranty | 1 Year |
| Motherboard Specifications | |
| CPU Compatibility | Intel |
| Socket | LGA 1700 |
| Form Factor | ATX |
| Chipset | Z790 |
| Memory | DDR5 |
| Memory Slot Numbers | 4 |
| Max Memory Supported | Max. 192GB |
| PCIE Slot | 1 x PCIe 5.0 x16 slot, 3 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot |
| Storage | M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports |
| Raid | Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| USB | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| Wifi | Yes |
| Internal IO | 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 3 x Addressable Gen 2 headers, 2 x Aura RGB headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-5pin System Panel header, 1 x Thunderbolt™ (USB4®) Header |
| Back Panel Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port |
